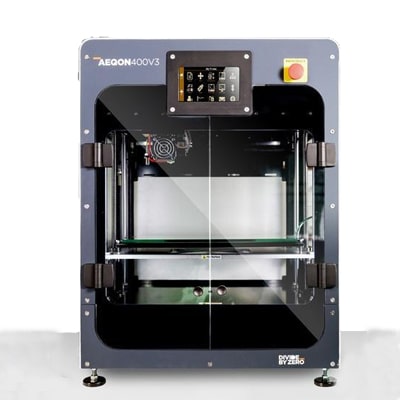

Aeqon 400V3

Aeqon 400V3 is India’s first mid size single extruder 3D printer with a unique gantry design for easy 3D printing of mid size prototypes. Aeqon 400 V3 low-noise operation, quick-load functionality, super-fast slicer and industrial-grade build quality ensure reliable print-cycles. With specially design high precision ball screws gantry along with print speed upto 200mm/sec, this 3D printer delivers unmatched precision and repeatability – a prerequisite in rapid prototyping and low-volume batch manufacturing.

Looking for more information?

Please fill this form, we will get back to you soon.

  • This field is for validation purposes and should be left unchanged.

PRODUCT DESCRIPTION

Aeqon 400V3 is a machine that grows with you. They call it “Start Small, Think Big” technology. These can be connected through WI-Fi, Ethernet and USB and can be accessed through web browser-on your desktop with access to live camera feed of the print and queue your next prints for your operator who has limited machine access if you want it.

Aeqon 400V3 has 2X Fast deposition rate, 35% small footprints which occupies less work-space, High speed Z axis- dual ball screw, multi material on one machine and automatic multi point bed leveling correction.

SPECIFICATIONS

Technology FDM
Build Volume 400 x 300 x 300 mm
Accuracy  80-250 micron
Extruders Single
Print Speed Up to 200 mm/s
Noise level <50 dB
Nozzle Diameter 0.4 – 0.8 mm
Build Material ABS+, PLA, Metal fill, Carbon fibre, Polycarbonate, Polyurethane, ABS – PC.
Power Requirements 220V – 4A – 50Hz
Product Weight 113 Kgs
Product Dimensions 730 x 670 x 900mm
