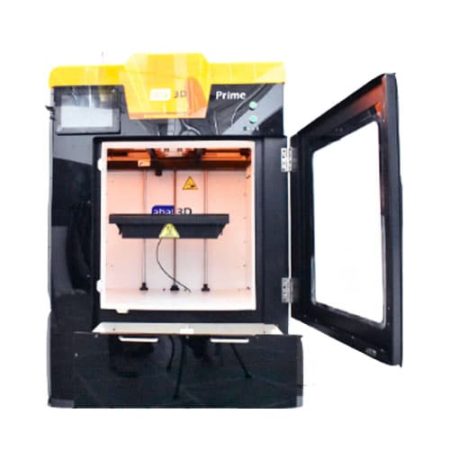

Aha Prime
Aha Prime 3D Printers bring to you all the features that the Aha Star is known for, but at a smaller build volume and at the most optimized price point. It brings to you latest in features and technology that our brand stands for. However it can be installed in your lab, and does not call for a full-blown factory setup.
You will love aha prime for all the unique features that you get, and the ease of use that comes from our deep experience in designing and manufacturing 3D printers. Added to that the flavours you get the Aha Prime in, you are sure to find the right 3D printer for your advanced lab that you will love!
Built to handle true Indian conditions, its unique PrintProtectTM feature ensures that if power fails during a print, the machine pauses, and resumes from the same location where it left when the power is restored. This means that the machine does not require any special conditions for operation.
PRODUCT DESCRIPTION
Future-proof
Modular design, fully customizable and upgradeable. Free remote software upgrades for life.
Precise
Options to go down to 4 microns positional accuracy.
Reliable
Proven 24x7x365 operations in industry setup.
Flexible
Accepts multiple materials. Fully customizable and upgradeable at any time. No hard installation. No special requirements..
Post-sales
Developed and manufactured in India, backed by experienced staff to ensure zero downtime.
Fast
Get upto 10 times faster rate of production than other 3D printers of similar segment. Customized options available to go even higher.
Features of Aha Prime 600 3D Printer
Build Volume
Featuring a large 500 x 500 x 600 cubic mm build volume, the 3D printer gives you a great working area for realizing your creations.
PrintProtect
Built to handle true Indian conditions, its unique PrintProtectTM feature ensures that if power fails during a print, the machine pauses, and resumes from the same location where it left when the power is restored. This means that the machine does not require any special conditions for operation. (hack: users also use this feature to pause the print for indefinite periods of time, e.g. over weekends!)
Dual Extruders
The Aha Prime 600 features dual all-metal e3d extruders, which are well-known for their reliability, precision and performance. You can use the two extruders for main, support, or dual colour prints.
Choice of Materials
With an option to use two materials simultaneously in the same print, you can choose to use ABS main + HIPS support, PLA, dual material composites or dual colour materials.
Fully enclosed build volume
The Aha Prime 600 features a fully enclosed build volume which is passively heated to upto 60 degrees C, and which gives excellent results with even the most challenging plastics. Infact, the ProtoCentre 999 is known for its prowess in getting best quality ABS prints!
Heated build platform
The Aha Prime 600 features a heated build platform, which can attain temperature upto 125 Degrees C. This is sufficient to reliably 3D print all kinds of plastics and ensure proper bed adhesion.
With an option to use two materials simultaneously in the same print, you can choose to use ABS main + HIPS support, PLA, dual material composites or dual colour materials.
The Aha Prime 600 features a fully enclosed build volume which is passively heated to upto 60 degrees C, and which gives excellent results with even the most challenging plastics.
SPECIFICATIONS
| Aha Prime 600 Eco | Aha Prime 600 Standard | Aha Prime 600 Ultra | |
|---|---|---|---|
| Technology | FFF | FFF | FFF |
| Build volume | 500× 500× 600 mm cube | 500× 500× 600 mm cube | 500× 500× 600 mm cube |
| Printing material | PLA, ALA, PETG and PLA based composites | Manufacturable in filament form including ABS, PLA, HIPS, HDPE, PC, Nylon,TPU, TPE, Carbon Fiber Composites. | Manufacturable in filament form including ABS, PLA, HIPS, HDPE, PC, Nylon, TPU, TPE, Carbon Fiber composites |
| Accepted filament diameter | 3mm | 3mm | 3mm |
| Layer height | 50 to 500 microns | 50 to 500 microns | 50 to 500 microns |
| Max extrusion temperature | 300ºC | 500ºC | 500ºC |
| Build platform | Temperature controlled | Temperature controlled | Temperature controlled |
| Number of extruders | Two | Two | Two |
| Filament sensor | Yes | Yes | Yes |
| Data import format | STL, AMF, OBJ | STL, AMF, OBJ | STL, AMF, OBJ |
| XY motion | Stepper drive. Positional accuracy better than 50 microns. | Stepper drive. Positional accuracy better than 50 microns. | Servo drive. Positional accuracy better than 20 microns. |
| Highlights | Large build volume+Aha Sense OS | All eco features+High production tool head+Heated chamber+main HEPA filter | All std features+Servo drives+Filament backing chamber+ Additional HEPA filter+ Active carbon filter |
| Known for | Latest technology, industrial reliability, budget friendly | Multi-materials, production-friendly | Guaranteed servo-driven precision, fully loaded, all research options. |
| AHA SENSE OS | |||
| Machine performance parameters | Status and counters for useful machine and job parameters like total machine uptime, total runtime, total prtints performed, total filaments used etc. | ||
| Machine self monitoring | Machine perfoms preventive maintance based on sensor inputs and software logic. | ||
| Automatic error handling | Automatic handling of filaments feed error/empty error, power cuts & provides preventive maintenance notifications | ||
| Software Upgrades | Functionality enhancements via regular software upgrades | ||
