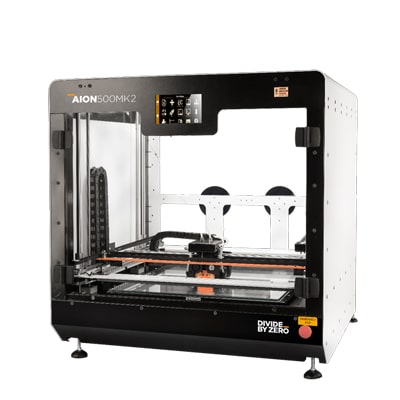

Aion 500 MK2

India’s first IoT-enabled, industrial grade professional 3D printer with patented Advanced Fusion Plastic Modelling (AFPM) technology. The revolutionary AION 500 MK2 is a high performance, IoT-enabled, massive size 3D printer that offers a professional-level build volume at an affordable price point. Armed with our patented AFPM (Advanced Fusion Plastic Modeling) technology, the printer renders a stronger and durable output.

Looking for more information?

Please fill this form, we will get back to you soon.

  • This field is for validation purposes and should be left unchanged.

PRODUCT DESCRIPTION

AION 500 MK2 is a fully enclosed industrial grade 3D printer and assures a consistently high print quality and repeatability. It has the Quick Load functionality for changing and loading filaments easily and a super-slicer feature that makes sure there’s no time lost when the print is initiated. The machine is easy to use allowing the user to alternate between quick-&- easy and pro printing smoothly. AION 500 MK2 also offers advanced features like Wi-Fi connectivity, in-built camera, utilization tracker, intuitive filament sensor and liquid cooling mechanism.

Aion 500MK2 is highly collaborative 3D Printer. Machine can be accessible from web browser for up to 10 user accounts and can be accessed and controlled on a secure connection. Now, not only the operator but also the designers can keep an eye on the progress of their valuable in process 3D print.With the unique X-Y motion system in AION 500 MK3 that moves Z axis as print is being build on stable build platforms, increase 50% printing speed. Safer print by cleaning with active carbon filter, 3D printing firmware–hardware combination ensures adaptive flow & temperature changes in material deposition ensuring better Component strength.Automatic pre-processing including slicing, automatic support generation, part packing and nesting computing part build time and material consumption. Sliced file can be directly sent to the cloud for printing.

SPECIFICATIONS

Technology FDM
Build Volume 500 x 500 x 500 mm
Accuracy  80-250 micron
Extruders Dual
Print Speed Up to 200 mm/s
Noise level <70 dB
Nozzle Diameter 0.4 mm/ 0.5 mm/ 0.6 mm
Build Material ABS, PLA, HIPS, PETG, Carbon fibre, AFPM special material, Polycarbonate, AFPM Carbon fibre
Power Requirements 100-120VAC/180-250VAC
Product Weight 250 Kgs
Product Dimensions 955 x 1040 x 925mm
