FLASHFORGE 3D PRINTERS
Flashforge Guider II

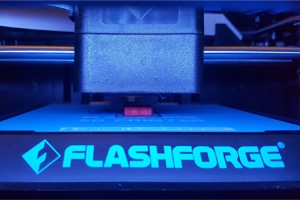

WHY CHOOSE FLASHFORGE
FlashForge has been a well-known name in the world of 3D printing ever since it started to develop open-sourced 3D printers and surpassed other open-sourced brands in quality and affordability.
|Flashforge Inventor||Flashforge Guider II||Flashforge Hunter|
|Layer Resolution||50-400 microns||50-400 microns||25-50 microns|
|Product Dimensions||476 x 332 x 383 mm||549 x 490 x 561 mm||360 x 310 x 565 mm|
|Power Requirements||220V, 350W||110-240V 50-60Hz .2A 350W, AC Input||100-240v, 50-60Hz, 1A|
|Build Volume||230 x 150 x 160 mm||280 x 250 x 300 mm||120 × 67.5 × 150 mm|
|Supported Filament||ABS, PLA, PVA, HIPS, Nylon etc||PLA, ABS, PETG, TPU, HIPS, PVA||Photopolymer resins|
|Connectivity||USB cable / SD card / WIFI||USB, WIFI||USB, WIFI|
|Product Weight||13.5 Kgs||30 Kgs||17.8 Kgs|
|Shipment Weight||18 Kgs||35 Kgs||25 Kgs|
|Build Volume Type||Medium||Medium||Medium|
|Nozzle Diameter||0.4 mm||0.4 mm||0.4 mm|
|Filament Diameter||1.75 mm||1.75 mm||1.75 mm|
Amazing products. I am super happy with the quality!
Flashforge printers help us a lot in the medical research. We are satisfied with the printing quality. Look forward to further cooperaton with think3D.
I heard they are the largest in India. I met the manager and saw the machines. They covered a variety of 3d printers all over the world.
Great team and excellent work. The 3d printer is working smoothly. Look forward to further cooperaton with think3D. Bravo!
We are a medical company and we have high standard for 3d printing quality. Flashforge printers met our standard well.
FREQUENTLY ASKED QUESTIONS
Flashprint, the mainstream slice software used by Flashforge, has gained outstanding reviews by the media and professionals. The software further offers an expert mode, which allows dozens of parameters to be set by the user, for greater printing flexibility.
The Guider II is FlashForge's new flagship 3D Printer designed to provide excellent printing quality, material versatility with large build volume. The Guider II is equipped with FlashForge's new innovative extruder design which provides a completely encircled air supply to elevate printing smoothness.
- Fused deposition modeling (FDM)
- Digital Light Processing(DLP)
- Selective Laser Sintering (SLS)
- Selective laser melting (SLM)
- Laminated object manufacturing (LOM)
- Digital Beam Melting (EBM)
PLA, ABS, PLA Color Change, Pearl, ABS Pro, Elastic, PVA, HIPS, PETG, TPE, TPU, Conductive Filament, Flexible Filament, Metal Filled Filament, Wood Filled Filament, and PP.
0.0005"/0.0010"/0.0020" (12.5/25/50 micro meters).
The three dimensional amount of space that an object will use once it is completed. The largest build volume of Inventor is 230*150*160mm.
If the first layer cannot stick to the build plate, the model will definitely fail later on. As the foundation of the model, the first layer is quite important for the success of the print job.
Reason 1: The first layer of your model is too thin.
Solution: Change the value of “First Layer Height”, and it should not be less than 0.2mm.
Reason 2: The build plate has not been leveled.
Each Flashforge printer has an adjustable build plate with three knobs underneath that control the distance between the build plate and nozzle. If the build plate has not been leveled, the first layer will probably cannot stick to the build plate. If the build plate is not leveled, one side may be too close to the nozzle, while the other side is too far away from the nozzle.
Solution: You need to re-level the build plate according to the correct hints. Make sure the build plate has been leveled before starting a print job.
Reason 3: The distance between the nozzle and the build plate is too huge.
Solution: Adjust the knobs under the build plate to make your extruder have a perfect distance away from the build plate — not too far and not too close. For good adhesion to the build plate, you can adjust the distance when the printer is printing the first layer.
Work Environment Safety:
- Keep your work place tidy.
- Do not operate Flashforge 3D Printers in the presence of flammable liquids, gases or dust.
- Store the Flashforge printers out of reach of children and untrained people.
Temperature: RT 15-30℃
