WHY CHOOSE MEDIT

MEDIT I500 & Solutionix C500 are products of MEDIT, a South Korean based dedicated to dental and industrial CAD/CAM solutions for more than 18 years. With more than 7000 customers, 100+ partners in 50+ countries, MEDIT is well established in 3D Scanning industry. The scanners come with a state-of-art workflow management system and communication software, MEDITLINK and provide highly accurate and detailed 3D measurement data using Blue LED scanning technology and high resolution twin-cameras for a fast and easy-to-use metrology experience.

Contact Us

PRODUCT PORTFOLIO

Flashforge Inventor

Solutionix C500

LEARN MORE
Flashforge Guider II

Medit i500

LEARN MORE

OUR CLIENTS

CUSTOMER SPEAK

I have ordered a doll to be 3d modelled as a service from think3d and got the output as expected. Satisfied with delivery.

Avinash R

I am very satisfied with the design team. They have well patient and great communication to explain things

Murali Srikanth

I am very impressed with your presentation. We got lot of information about 3D Printers and 3D Printing Services. Thank you…

Rajesh Kumar

FREQUENTLY ASKED QUESTIONS

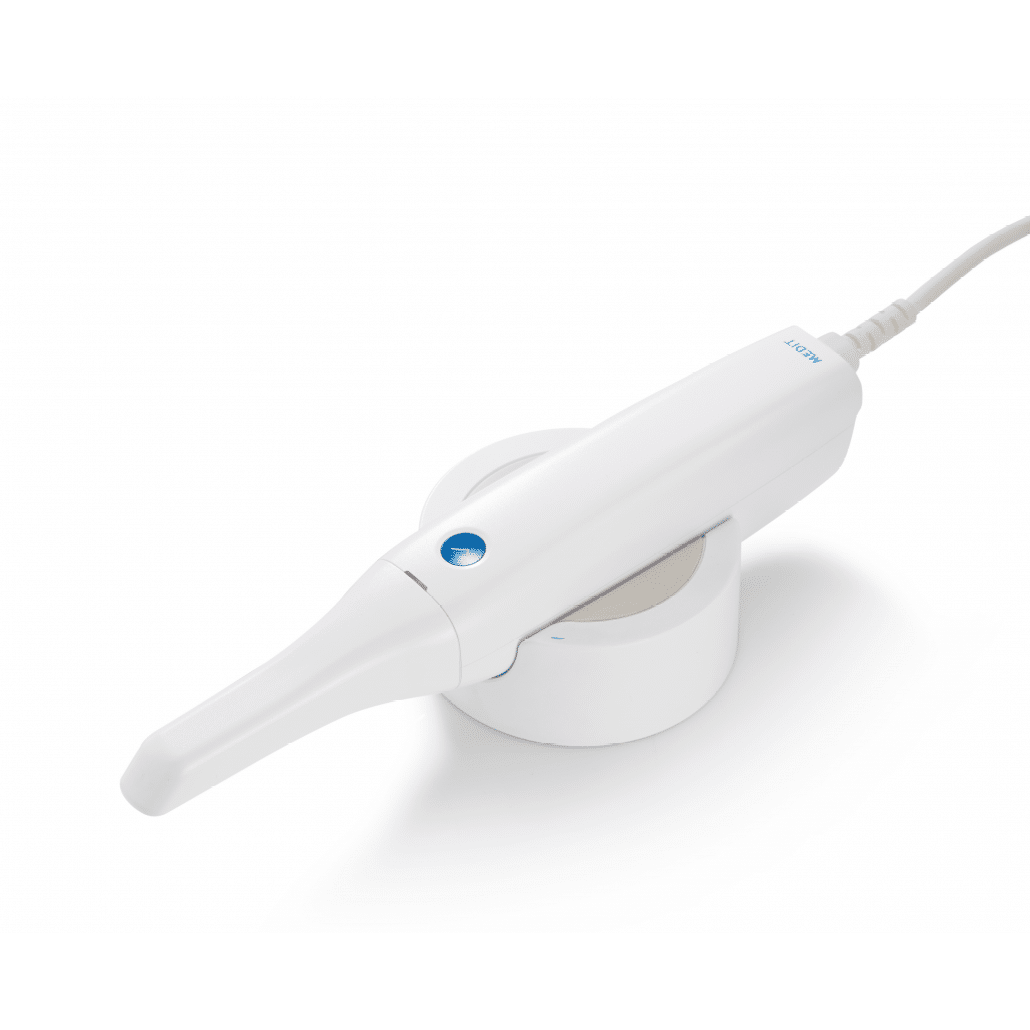

What is the scan volume of Medit i500?

The scan volume can be 14 x 13 mm.

How long does it take for the scanner to start up?

The scanner will start supplying scan data one second after connection and identification.

What are the systems requirements for Medit i500?

There are the system requirements needed to use the Medit i500 intraoral scanner with the iScan software. We advise you to make sure your system meets the minimum system requirements.

- Laptop

  • CPU: Above Intel Core i7-8750H
  • RAM: Above 16 GB
  • Graphics Card: Above NVIDIA GeForce GTX 1060
  • OS: Windows 10 64-bit
  • Use PC and monitor certified IEC 60950, IEC 55032, IEC 55024

- Desktop

  • CPU: Above Intel Core i7-8700
  • RAM: Above 16 GB
  • Graphics Card: Above NVIDIA GeForce GTX 1060
  • OS: Windows 10 64-bit
  • Use PC and monitor certified IEC 60950, IEC 55032, IEC 55024.
How to calibrate the Medit i500?
  • Turn on the i500 and connect the device to the software.
  • Run calibration Wizard from the file Menu > Setting > Calibration
  • Prepare the Calibration Tool and i500.
  • Turn the dial of the calibration position.
  • Put the tip of the i500  into the calibration tool.
  • Click Next to start calibration process.
  • When the tip is mounted in the correct position, the system will automatically aquire the data at the position.
  • When data acquisition is completed at the positioion 1 turn the dial to the next position.
  • Repeat the steps for positions.
  • When the data aquisition is completed at the last position the system will automatically calculate and show the calibration result.
Why are nearby objects scanned with more detail than far away objects?

The scanner's view is projective, meaning closer objects are seen with greater detail than objects that are further away. Basically, the scanner operates the same way as our eyes. As such, an object that is one inch in size and close to the scanner can be seen better than the same object that is farther away from the scanner.

What temperature range is suitable for the scanner?

The scanner should not be operated outside of the specified temperature range. The scanner's design specifications call for temperatures between 5°C and 40°C for optimal use. Higher or lower temperatures may alter the scanner's performance, and in extreme deviations from the defined specification, the scanner may not work at all.

What is the resolution of scans from Solutionix C500?

Solutionix C500 is optimized for scanning small- to medium-sized objects. With dual 5.0MP cameras, theSolutionix C500 provides excellent data quality at a high resolution, making it the most user-friendly 3D scanner on the market.

What is the measuring area of Solutionix C500?

Solutionix C500 is available with different levels of detail. The measuring areas of this sensor can be changed easily, covering a range of different part size.  Those are 90 / 175 / 350/500  mm.

What is the resolution of Solutionix C500?

0.028 / 0.056 / 0.110 / 0.157 mm Respective of scan volume.

Why does the 3D view turn white and nothing is visible when I get the scanner very close to an object?

This happens if you get closer than the scanner's minimal defined distance (15 inches).
