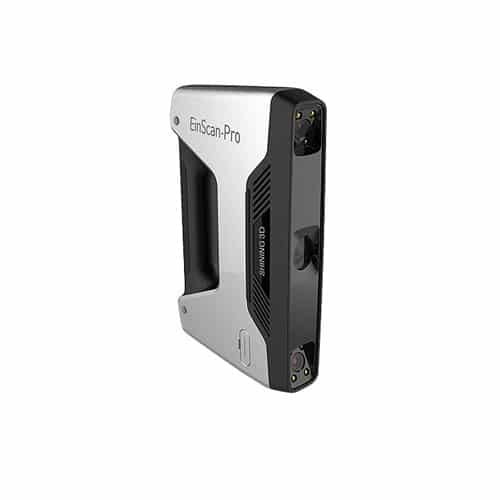

EinScan Pro

Einscan Pro is a new portable and light-weight handheld scanner from Shining3D, the makers of Einscan – S. The Einscan Pro is quite versatile and can be used in four modes – ‘Handheld HD Scan’, ‘Handheld Rapid Scan’ , ‘Automatic Scan’ and ‘Free Scan’. These modes provide you with the flexibility to scan wide range of objects. In the combination with the add-on device ‘color pack’ you can extract texture information along with the geometry of the objects. With the ‘Industrial pack’ which consists of a turntable and a tripod, the scanner can be used as a stationary scanner to achieve higher accuracy. Einscan Pro is a perfect scanner for scanning humans to make miniatures.

Looking for more information?

Please fill this form or call us at +91-8142896564
  • This field is for validation purposes and should be left unchanged.

SPECIFICATIONS

Scan Mode Handheld HD Scan Handheld Rapid Scan Automatic Scan Fixed Scan
Scan Shot Accuracy 0.1 mm 0.3 mm 0.05 mm 0.05 mm
Scan Speed 15 frames/sec 10 frames/sec Single scan: <2 s Single scan: <2 s
Point Distance 0.2 – 2 mm 0.5 – 2 mm 0.16 mm 0.16 mm
Align Mode Markers Feature,Markers (Optional) * Markers, Feature, Turntable, Manual, Turntable Coded Targets Markers, Feature, Manual Align
Texture Scan No Yes (With purchase of Color Pack) Yes (With purchase of Color Pack) Yes (With purchase of Color Pack)
Outdoor Operation No No No No
Outdoor Operation No (Avoid direct sunlight) No (Avoid direct sunlight) No (Avoid direct sunlight) No (Avoid direct sunlight)
Special Scan Object For a transparent, reflective or dark object, please powder spray prior to scanning
Single Scan Range 210×150 mm 210×150 mm 210×150 mm 210×150 mm
Light Source White light LED White light LED White light LED White light LED
Printable Data Output Yes Yes Yes Yes
File Format OBJ, STL, ASC, PLY OBJ, STL, ASC, PLY OBJ, STL, ASC, PLY OBJ, STL, ASC, PLY
Turntable Loading Capacity 5 kg 5 kg 5 kg 5 kg
Scan Head Weight 0.8 kg 0.8 kg 0.8 kg 0.8 kg
OS System Support Windows 7, 8 or 10, 64bit Windows 7, 8 or 10, 64bit Windows 7, 8 or 10, 64bit Windows 7, 8 or 10, 64bit
