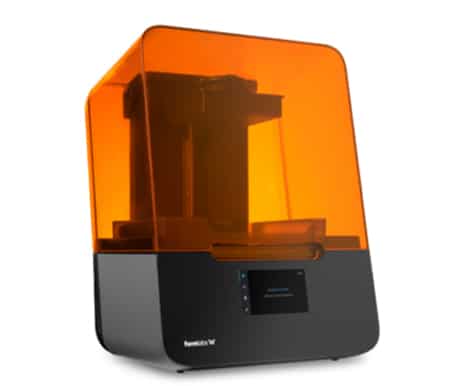

Formlabs Form 3

Form 3 helps to Scale prototyping and production as your business grows with the Form 3, an affordable, industrial-quality 3D printer that consistently delivers. The Form 3 constantly monitors print performance so you can focus on bringing your most creative ideas to life. Integrated sensors help maintain ideal print conditions and send you alerts about the state of your machine.

Looking for more information?

Please fill this form, we will get back to you soon.

  • This field is for validation purposes and should be left unchanged.


PRODUCT DESCRIPTION

The Form 3 constantly monitors print performance so you can focus on bringing your most creative ideas to life. Integrated sensors help maintain ideal print conditions and send you alerts about the state of your machine. The high-power-density laser is passed through a spatial filter to guarantee a clean laser spot. The custom-designed Light Processing Unit (LPU) inside the printer uses a compact system of lenses and mirrors to deliver accurate, repeatable prints.

Advantages

    • Higher Success Rate: thanks to the heated resin tank and new peel mechanism.
    • Automated Resin System enables you to print big parts without pausing for refills.
    • Easy To Use: with Wifi connectivity and Touchscreen controls
    • Affordable Price
    • Support & Warranty

Designed For

  • Engineering & Product Design
  • Manufacturing
  • Research & Education
  • Model Making & Entertainment
  • Jewelry
  • Dentistry

Properties

  • Peel Mechanism : Sliding Peel Process with wiper
  • Resin Fill System : Automated
  • Optical Path : Protected
  • Printer control : Interactive Touch-screen with Push-button

Extra Features

  • Simple print setup
  • Auto-orient for optimal print position
  • Auto-mesh repair
  • Auto-generation of supports
  • Rotation, scaling and duplication
  • Layer slicer for path inspection

SPECIFICATIONS

Technology Stereolithography (SLA)
Build Volume 145 × 145 × 185 mm (5.7 × 5.7 × 7.3 in)
Layer Thickness (Axis Resolution) 25, 50, 100 microns (0.001, 0.002, 0.004 inches)
Material Photopolymer Resin
Resin Types Standard Resins – general purpose. Functional Resins – Castable, Dental SG (Biocompatible Class 1), Flexible & Tough
Software PreForm
Connectivity Wifi, Ethernet and USB
Data format .stl, obj
Operating Temperature Auto-heats to 35 °C , Auto-heats to 95 °F
Power Requirements 100–240 VAC, 2.5 A,50/60 Hz, 220 W
Laser Specifications 1 Light Processing Unit,EN 60825-1:2007 certified,Class 1 Laser Product,405 nm wavelength,250 mW power
Laser Spot Size (FWHM) 80 microns (0.0055 inches)
Dimensions 40.5 × 37.5 × 53 cm(15.9 × 14.8 × 20.9) in
