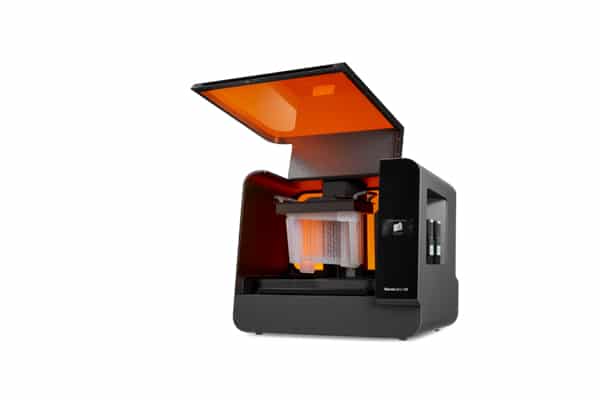

Formlabs Form 3BL

The Form 3BL is the large format dental 3D printer that raises the bar for dependable high-production dental 3D printing, designed to work day and night with minimal intervention. Print 48 models in a day, with only two printer interactions. Spend less time troubleshooting and get new hires up to speed quickly with intuitively designed, easy-to-use hardware and software.

Looking for more information?

Please fill this form, we will get back to you soon.

  • This field is for validation purposes and should be left unchanged.


PRODUCT DESCRIPTION

The Form 3BL is the large format dental 3D printer that raises the bar for dependable high-production dental 3D printing, designed to work day and night with minimal intervention. Print 48 models in a day, with only two printer interactions. Spend less time troubleshooting and get new hires up to speed quickly with intuitively designed, easy-to-use hardware and software.

Advantages

  • Higher Success Rate
  • Automated Resin System enables you to print big parts without pausing for refills
  • Easy To Use: with Wifi connectivity and Touchscreen controls
  • Affordable Price
  • Support & Warranty

Designed For

  • Orthodontic
  • Dentistry

Properties

  • Biocompatible materials : Yes
  • Resin Fill System : Automated
  • Supports : Auto-generated, Light-touch removal
  • Printer control : Interactive Touch-screen

Extra Features

  • Simple print setup
  • Auto-orient for optimal print position
  • Auto-mesh repair
  • Auto-generation of supports
  • Rotation, scaling and duplication
  • Layer slicer for path inspection

SPECIFICATIONS

Technology Low Force Stereolithography (LFS)
Build Volume 33.5 × 20 × 30 cm (5.7 × 5.7 × 6.9 in)
Layer Thickness (Axis Resolution) 25-300 microns (0.001, 0.012 inches)
Material Photopolymer Resin
Resin Types Standard Resins – general purpose. Functional Resins – Castable, Dental SG (Biocompatible Class 1), Flexible & Tough
Software PreForm
Connectivity Wifi, Ethernet and USB
Data format .stl, obj
Operating Temperature 18–28°C, 64–82°F
Power Requirements 100–240 V, 8.5 A MAX, 50/60 Hz, 650 W
Laser Specifications EN 60825-1:2007 certified, class 1 laser product, 405nm wavelength, 250 mW power
Laser Spot Size (FWHM) 85 microns (0.0033 inches)
Dimensions 77 × 52 × 74 cm
(30.3 × 20.5 × 29.1) in
