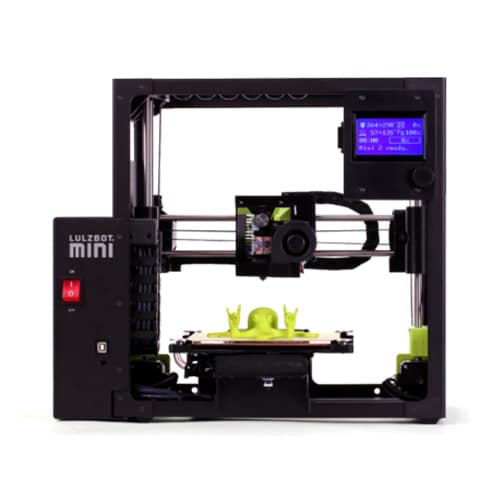

LulzBot Mini 2

The LulzBot Mini 2 Desktop 3D Printer is engineered and built to exacting standards calibrated and ready to work. A versatile, high performance desktop 3D printer engineered to deliver premium results print after print. Compact, portable, and scalable, the Mini 2 features numerous upgrades over the original LulzBot Mini.

20% larger build volume with no increase in footprint. Innovative belt-driven Z-axis for better print quality and faster cycle times. GLCD Controller for tetherless 3D printing. Prints both rigid and flexible filaments out of the box. Whisper quiet operation.

Print more, fuss less. LulzBot 3D Printers feature automatic leveling for maximum efficiency and quality prints, every time.

Contact Us

PRODUCT DESCRIPTION

A versatile, high performance desktop 3D printer engineered to deliver premium results print after print. Compact, portable, and scalable, the Mini 2 features numerous upgrades over the original LulzBot Mini:

  • 20% larger build volume with no increase in footprint
  • Innovative belt-driven Z-axis for better print quality and faster cycle times
  • GLCD Controller for tetherless 3D printing
  • Prints both rigid and flexible filaments out of the box
  • Whisper quiet operation

Amazing Print Quality

Start with an innovative belt driven Z-axis, add the latest in motion planning from Marlin firmware and hundreds of tested print profiles in Cura LulzBot Edition v3 software, and finish with 360-degree part cooling. You’ve got quality clamped down.

Flexible Materials

Go from printing PLA to TPU and back again without changing tool heads. The genuine E3D Titan Aero extruder/hot end prints both rigid and flexible materials with ease.

Tetherless Operation

Free your computer with the Mini 2’s Graphical LCD Controller. Just save the G-code file from Cura LulzBot Edition to the included SD card, insert, and print. Wherever you are.

Quick-Change Print Bed

The Modular Print Bed System on the LulzBot Mini 2 heats up quickly and features a reversible glass/PEI print surface, expanding versatility and simplifying maintenance.

SPECIFICATIONS

Print Technology Fused Filament Fabrication (FFF)
Print Area 160mm x 160mm x 180mm (6.30in x 6.30in x 7.09in)
Print Volume 4608cm³ (281.4in³)
Ambient Operating Temperature From 5°C to 45°C (41°F to 113°F)
Operating Footprint 45.7cm x 40.6cm (18in x 16in)
Maximum Travel Speed 300mm/s
Leveling Automatic Compensation
Connectivity USB Serial and Included 8gb SD Card
Included Tool Head LulzBot Mini 2 Standard Tool Head
Extruder/Hot End E3D Titan Aero
Nozzle Diameter 0.5 mm
Nozzle Material Nickel-Plated Copper Alloy
Nozzle Temperature Up to 290°C (554°F)
Print Surface Heated Borosilicate Glass/PEI
Maximum Print Bed Temperature Up to 120°C (248°F)
Print Bed Heat Up Time From 23°C to 60°C (73°F to 140°F) in 97 seconds
Layer Resolution 0.05mm-0.4mm (0.002″-0.015″)
Minimum Positive Feature Size 0.5mm (0.02in)
Filament Diameter 2.85mm
Supported Materials Open filament system compatible with PLA, Natural and Metal PLA Blends, TPU, ABS, PETG, nGen, INOVA-1800, HIPS, HT, t-glase, Alloy 910, Polyamide, Nylon 645, Polycarbonate, PC-Max, PC+PBT, PC-ABS Alloy, PCTPE, and more.
Operating System Compatibility GNU/Linux, Mac, Windows
Recommended Software Cura LulzBot Edition Version 3.2 or newer
Supported File Types .stl, .obj, .x3d, .3mf, .png, .jpg
Power Requirements 100VAC-240VAC, 50Hz-60Hz, 3.2A max
Download Brochure
