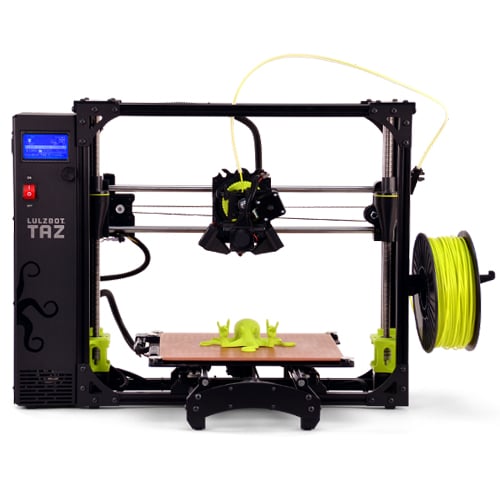

LulzBot TAZ 6

The LulzBot TAZ 6 is the most reliable, easiest-to-use desktop 3D printer ever, featuring innovative self-leveling and self-cleaning, and a modular tool head design for flexible and multi-material upgrades. With proven 3D printing technology and one of the largest print volumes in its class, the LulzBot TAZ 6 is ready to work.

3D printing is more reliable than ever with the integrated automatic bed leveling system, all metal LulzBot v2 Hot End, and heated PEI print surface. With the all metal hot end, you can take advantage of the cutting edge market for new materials.

Perfect for both large and small objects, the heated PEI build surface keeps your 3D printed objects in place when hot and releases when cool. With Cura LulzBot Edition, you have hundreds of quickprint profiles built in for seamless 3D printing.

Contact US

PRODUCT DESCRIPTION

3D printing is more reliable than ever with the integrated automatic bed leveling system, all metal LulzBot v2 Hot End, and heated PEI print surface.  With the all metal hot end, you can take advantage of the cutting edge market for new materials. Perfect for both large and small objects, the heated PEI build surface keeps your 3D printed objects in place when hot and releases when cool. With Cura LulzBot Edition, you have hundreds of quickprint profiles built in for seamless 3D printing.

Optional tool head upgrades

The LulzBot TAZ 6 boasts multiple tool head upgrade options such as the Flexystruder for reliable printing of flexible filaments and the Dual Extruder and FlexyDually tool heads, for two-color or multi-material 3D printing. The LulzBot TAZ 6 utilizes an open filament format. This means you have the freedom to choose from dozens of leading and new materials, with over 300 quickprint profiles in Cura LulzBot Edition out-of-the-box.

Large print volume

The LulzBot TAZ 6 has a build volume nearly the size of a basketball so you can make huge 3D prints, or 3D print many objects in a single print run, right on your desktop. Like the generations before it, the TAZ 6 boasts a spacious 280mm x 280mm x 250mm (11 in x 11 in x 9.8in) print area with a heated print surface.

Materials

LulzBot TAZ desktop 3D printer is capable of printing in even more advanced and expert level filament materials including PC-ABS, PC-Max, polycarbonate, 645 Nylon, ColorFabb HT, Conductive PLA, PVA, and more.

The Cartesian Coordinate Robot

The LulzBot TAZ can move on three linear axes that define its movement, X, Y, and Z.

Print Bed

Your LulzBot TAZ has a PEI print surface, which helps printed objects adhere to the bed. For optimal performance, lightly wipe the print bed with a dry paper towel between prints.

SPECIFICATIONS

Print Technology Fused Filament Fabrication (FFF)
Print Volume Dimensions 280 mm x 280 mm x 250 mm (11.02 in x 11.02 in x 9.80 in)
Print Volume 19,600 cm³ (1,185 in³)
Ambient Operating Temperature From 5°C to 45°C (41°F to 113°F)
Operating Footprint 82 cm x 65.5 cm x 52 cm (32.28 in x 25.79 in x 20.47 in)
Maximum Travel Speed 200 mm/sec
Leveling Automatic Compensation
Connectivity USB Serial and Included 8gb SD Card
Included Tool Head TAZ Single Extruder Tool Head v2.1
Extruder/Hot End Hexagon Hot End
Nozzle Diameter 0.50 mm
Nozzle Material Beryllium Copper
Nozzle Temperature Up to 290°C (554°F)
Nozzle Heatup Time From 27°C to 230°C (80°F to 446°F) in 2 minutes, 55 seconds
Print Surface Heated Borosilicate Glass/PEI
Maximum Print Bed Temperature Up to 120°C (248°F)
Print Bed Heat Up Time From 27°C to 100°C (80°F to 212°F) in 7 minutes, 11 seconds
Layer Resolution 0.05mm-0.4mm (0.002″-0.015″)
Minimum Positive Feature Size 0.5 mm (0.02 in)
Calculated XYZ positional resolution 10, 10, <1 micron
Dimensional accuracy ±0.2mm
Filament Diameter 2.85 mm
Supported Materials Open filament system compatible with PLA, Natural and Metal PLA Blends, TPU, ABS, PETG, nGen, INOVA-1800, HIPS, HT, t-glase, Alloy 910, Polyamide, Nylon 645, Polycarbonate, PC-Max, PC+PBT, PC-ABS Alloy, PCTPE, and more
Operating System Compatibility GNU/Linux, Mac, Windows
Recommended Software
Supported File Types .stl, .obj, .x3d, .3mf, .png, .jpg
Power Requirements 100VAC-240VAC, 50Hz-60Hz, 3.2A max
Download Brochure
