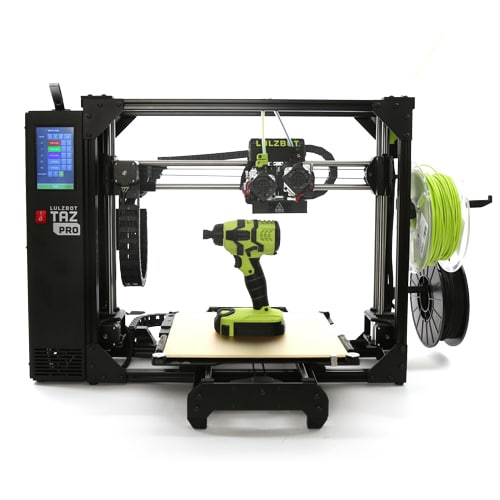

LulzBot TAZ Pro

The new LulzBot TAZ Pro is an industrial desktop 3D printer that provides large, multi-material and soluble support printing. Create large functional prototypes, manufacturing aids, and print-on-demand parts with easy, professional results.

Two active-lifting hot ends enable true multi-material 3D printing and complex parts. Large 280 x 280 x 285 mm build volume with heated build plate. Automated X/Y/Z offset calibration, nozzle wiping, and self-leveling features. Hardened steel E3D components enable printing of soft, flexible materials up to industrial-grade composites. Dual filament runout sensors.

Print more, fuss less. LulzBot 3D Printers feature automatic leveling for maximum efficiency and quality prints, every time.

Contact Us

PRODUCT DESCRIPTION

The new LulzBot TAZ Pro delivers true multi-material printing, soluble supports, superior 3D print quality, and easy, professional results.

  • Two active-lifting hot ends enable true multi-material 3D printing and complex parts.
  • Large 280 x 280 x 285 mm build volume with heated build plate.
  • Automated X/Y/Z offset calibration, nozzle wiping, and self-leveling features.
  • Hardened steel E3D components enable printing of soft, flexible materials up to industrial-grade composites.
  • Dual filament runout sensors.

Multi-Material

The TAZ Pro boasts true multi-material 3D printing with unique filaments, not just different colors. Two active-lifting hot ends enable printing with multiple materials with similar melting points within the same part.

Soluble Supports

Enjoy total geometric freedom straight out of the box! The TAZ Pro supports water-soluble dedicated support material for complex designs, eliminating the need for time-consuming manual post-processing.

Hardened Steel Components

The hardened-steel components of the TAZ Pro enable printing with high-strength and high-heat composites that are too abrasive for typical out-of-the-box desktop 3D printers.

Flexible-Ready

Go from printing PLA to 85A shore hardness TPU and back again without changing tool heads. The genuine E3D Titan Aero extruder/hot ends print both rigid and flexible materials with ease.

Premium Hot Ends

Two genuine E3D Titan Aero hot ends and 360° part cooling deliver premium prints while improved heat sink cooling prevents filament stripping during printing.

Belt Driven Z-Axis

A belt drive Z-axis, technology exclusively found on LulzBot 3D Printers, eliminates “Z wobble” print artifacts often caused by threaded rods while simultaneously speeding up cycle times.

Automatic Backlash Compensation

A concept used in professional-grade CNC’s, the LulzBot TAZ Pro uses an innovative calibration cube to measure and compensate for X/Y/Z backlash, increasing printed part precision.

Automatic Calibration

Automatic nozzle wiping, a self-leveling bed, and an all new calibration cube eliminate the need for time consuming calibration prints and manual bed leveling.

Enhanced Electronics

Enhanced electronics deliver greater processing power, more memory, quiet operation, and additional functionality.

Ready-To-Print Profiles

Enjoy the industry’s widest array of supported materials with ready-to-print profiles including flexible, rigid, composite, conductive, high strength, and chemically-resistant filaments. Simply select your material and desired print quality, then press print.

5″ Full Color Touch Screen

Added functionality with improved visibility is at your fingertips with an easy-to-use, full-color capacitive touch screen.

SPECIFICATIONS

Print Technology Fused Filament Fabrication (FFF)
Print Volume Dimensions 280 mm x 280 mm x 285 mm (11.02 in x 11.02 in x 11.22 in)
Print Volume 22,344 cm³ (1,362.56 in³)
Ambient Operating Temperature From 5°C to 45°C (41°F to 113°F)
Operating Footprint 83.2 cm x 71 cm x 52 cm (32.76 in x 28 in x 20.47 in)
Maximum Travel Speed 200 mm/sec
Leveling Automatic Compensation
Calibration Automatic X/Y/Z offset calibration
Connectivity USB Serial or USB Flash Drive with Included 4gb Flash Drive
Included Tool Head TAZ Pro Dual Extruder
Extruder/Hot End 2x E3D Titan Aero
Nozzle Diameter 0.50 mm
Print Surface Modular Heated Borosilicate Glass/PEI
Maximum Print Bed Temperature Up to 120°C (248°F)
Print Bed Heat Up Time From 18°C to 100°C (64°F to 212°F) in 10 minutes, 45 seconds
Layer Resolution 0.05mm-0.4mm (0.002″-0.015″)
Calculated XYZ positional resolution 10, 10, <1 microm
Dimensional accuracy ±0.2mm
Filament Diameter 2.85 mm
Supported Materials Open filament system compatible with PLA, ABS, Nylon, Polycarbonate, Carbon Fiber Reinforced Blends, TPU 85A & 95A (Flexible), PETG, PETT, Copolyester, PVB (Polycast), PVA, HIPS, and many more 3rd party filaments.
Operating System Compatibility GNU/Linux, Mac, Windows
Recommended Software
Supported File Types .stl, .obj, .x3d, .3mf, .png, .jpg
Power Requirements 100VAC-240VAC, 50Hz-60Hz, 3.2A max
