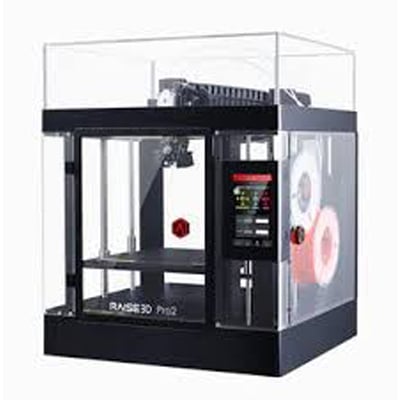

Raise3D Pro2

Raise3D Pro2 is a high quality & reliable Dual Extruder 3D Printer. Raise3D stands for the production of high quality, reliable and affordable 3D printers. Manufacture with this good-value 3D printer small series and prototypes. There are many new features and further optimizations in these printers.

Looking for more information?

Please fill this form, we will get back to you soon.

  • This field is for validation purposes and should be left unchanged.

PRODUCT DESCRIPTION

Raise3D Pro2 is a high quality & reliable dual extruder 3D printer. The most important new features of the Raise3D Pro2 are precise control of the building platform, optimized extruder, integrated filament sensor and high temperature silicon printing bed. Further optimizations like improved caliberations, integrated camera, optimized nozzle, high optical end stops.

Raise3D Pro2 convinces with many intelligent functions. There are very few 3D printers on the market that can integrate all this functionality into one device. The vast majority of these devices cost a multiple of the Raise3D Pro2. Intuitive 7-inch color touch display, enclosed building chamber which allows to process more sophisticated materials such as ABS, HIPS, PET-G, PLA +, PP and ASA. Make parts with the dual extruder parts from two different filaments, materials and support materials. We can use PVA or HIPS as the second filament, we can realize very complex components with overhangs. After finished 3D printing, you can simply dissolve the support filament and get great results.

Now Raise3D Pro2 works with a new silicone heating bed. This increases adhesion of your components on the platform. The base of this forms a magnetic aluminum bed. This is equipped with an improved 4 + 9 points lock system. Air filter for improved air quality reduces fumes and smells. Resume Function after power failure 3D printer. Fast and precise production with Raise 3D Pro2. The Raise3D Pro2 allows you to 3D print at high speed and produce at a very high level. In the Z direction, the remarkable resolution of a minimum of 0.01 mm layer thickness can be achieved. 3D print fine structures and very smooth surfaces. When you work with such a high resolution we recommend you only to manufacture small parts, since the construction time increases sharply.

SPECIFICATIONS

Technology FDM
Build Volume 305×305×300mm(single Extruder)

280×305×300mm(Double Extruder)

Filament Diameter  1.75 mm
Extruders Single / Dual
Print Travel Head Speed 30–150 mm/s
Noise level <50 dB
Nozzle Diameter 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
Build Material PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused /

Carbon Fiber Infused / Metal Fill / Wood Fill

Heated Bed Material Silicon
Power Requirements 100-240 V AC, 50/60 Hz 230 V @3.3 A
Product Dimensions 620×590×760 mm
