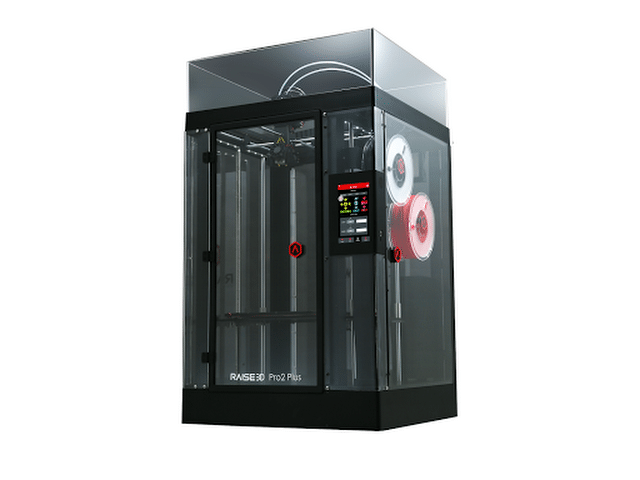

Raise3D Pro2 Plus

The print quality of the Raise3D Pro2 Plus varies from very good to excellent, and while we feel the machine generally lives up to its professionalist image. Raise3D stands for the production of high quality, reliable and affordable 3D printers.

Looking for more information?

Please fill this form, we will get back to you soon.

  • This field is for validation purposes and should be left unchanged.

PRODUCT DESCRIPTION

The industrial-grade Raise3D Pro2 Plus is the powerful new 3D printer that is expanding creativity, inspiring ingenuity, and empowering designers, architects, engineers, and makers of all skill levels to imagine new possibilities and build the extraordinary.  The Pro2 Plus 3D printer is the scaleable 3D printing solution that has the rugged durability, advanced features, and reliability to deliver repeatable results for next generation manufacturing, taking your vision from prototype to production. There are very few 3D printers on the market that can integrate all this functionality into one device.

Raise3D Pro2 plus convinces with many intelligent functions. There are very few 3D printers on the market that can integrate all this functionality into one device. The vast majority of these devices cost a multiple of the Raise3D Pro2 plus. Intuitive 7-inch color touch display, enclosed building chamber which allows to process more sophisticated materials such as ABS, HIPS, PET-G, PLA +, PP and ASA. Make parts with the dual extruder parts from two different filaments, materials and support materials. We can use PVA or HIPS as the second filament, we can realize very complex components with overhangs. After finished 3D printing, you can simply dissolve the support filament and get great results.

Now Raise3D Pro2 Plus works with a new silicone heating bed. This increases adhesion of your components on the platform. The base of this forms a magnetic aluminum bed. This is equipped with an improved 4 + 9 points lock system. Air filter for improved air quality reduces fumes and smells. Resume Function after power failure 3D printer. Fast and precise production with Raise 3D Pro2. The Raise3D Pro2 allows you to 3D print at high speed and produce at a very high level. In the Z direction, the remarkable resolution of a minimum of 0.01 mm layer thickness can be achieved. 3D print fine structures and very smooth surfaces. When you work with such a high resolution we recommend you only to manufacture small parts, since the construction time increases sharply.

SPECIFICATIONS

Technology FDM
Build Volume 305×305×605mm(single Extruder)

280×305×605 mm(Double Extruder)

Filament Diameter  1.75 mm
Extruders Single / Dual
Print Travel Head Speed 30–150 mm/s
Noise level <50 dB
Nozzle Diameter 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
Build Material PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused /

Carbon Fiber Infused / Metal Fill / Wood Fill

Heated Bed Material Silicon
Power Requirements 100-240 V AC, 50/60 Hz 230 V @3.3 A
Product Dimensions 620×590×1105 mm
