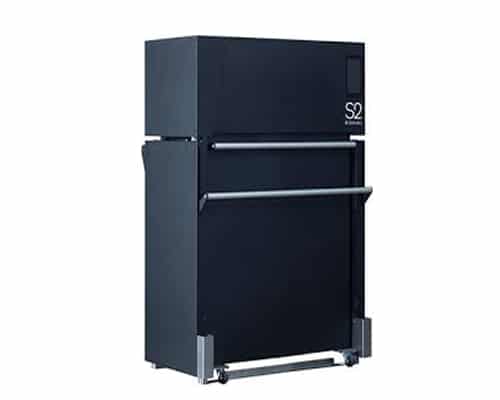

Sintratec S2

With Sintratec S2, the new scalable compact system, you can turn your ideas into reality within a short period of time, layer by layer, at high speed. The modular SLS production system can be expanded as needed, and adapts perfectly to your needs. Harness previously unimagined potential in professional prototyping and optimize your applications.

Looking for more information?

Please fill this form, we will get back to you soon.

  • This field is for validation purposes and should be left unchanged.


PRODUCT DESCRIPTION

Sintratec believes that the S2 is a first for SLS 3D printing, as it includes all-in-one integrated and semi-automated processes that include laser sintering, de-powdering, material preparation, and surface treatment. Not only will this grant users with high-quality laser sintered parts, but it will also make the entire process more economically sound and eliminate the time-consuming cleaning process.

TECHNICAL SPECIFICATIONS

  • X-Y laser scanning system for fast printing
  • High-resolution camera for real-time evaluation
  • Touchscreen for direct operation
  • Network connection for remote control and monitoring
  • Contactless point measurement for powder surface temperature control
  • Multi-zone heating
  • Physical Dimensions: 1,500 x 1,000 x 750 mm
  • Weight: Less than 100 kg
  • Power supply: 230 V | 2 kW max
  • Air filtration system
  • High-resolution camera for real-time evaluation
  • Touchscreen for direct operation
  • Network connection for remote control and monitoring
  • Integrated screening function
  • Integrated mixing function
  • Integration with Sintratec Vortex Unit
  • Physical Dimensions: 1,650 x 1,000 x 750 mm
  • Weight: Less than 100 kg
  • Power supply: 230V |1.5 kW max
  • High level of process reliability
  • Optimum mixing ratio
  • Automatic powder detection
  • Integrated multi-zone heating for build cylinders
  • Two internal powder tanks for quick layer changeover
  • Integrated re-coating system (coordinated to powder)
  • Build cylinder height: 400 mm
  • Build cylinder diameter: 160 mm
  • Physical Dimensions: 1,100 x 870 x 550 mm
  • Weight: Less than 100 kg
  • Autonomous and compact system
  • Sealing of surface impurities
  • Several components can be processed at the same time
  • External dimensions: 290 x 290 x 340 mm
  • Weight: 20 kg
  • Speed: 2,800 revolutions per minute (rpm)
  • Suitable for different blasting materials such as quartz, glass beads, and plastic beads
  • Working pressure: 2.8–8 bar
  • Compressed air connection: 3/8”
  • Internal dimensions: 580 x 480 x 300 mm
  • External dimensions: 590 x 485 x 490 mm
  • Weight: 17.25 kg
  • Single-motor wet and dry vacuum cleaner
  • High-efficiency cyclone pre-separator
  • Anti-static industrial vacuum cleaner
  • Weight: Approx. 20 kg
