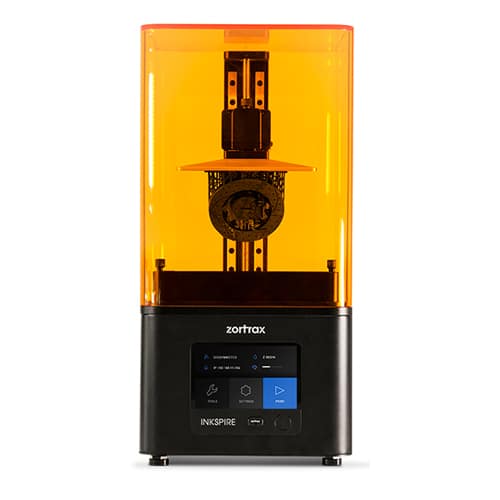

Zortrax Inkspire
From art to engineering, Zortrax Inkspire is perfect in all applications where superior precision makes the difference. With 50×50 microns pixel size and 25 microns minimal layer height, it can 3D print models with no visible layering or vertical lines.
The human eye can’t see individual pixels when the image has more than 336 pixels per inch. Pixel density in models 3D printed on Zortrax Inkspire exceeds this value regardless of the viewing angle.
Zortrax Inkspire has been designed to 3D print highly detailed models. It builds models out of tiny cuboids, measuring 50x50x25 microns. Because of these microscopic dimensions, Zortrax Inkspire can be up to 9x more precise than the circular brush of leading SLA 3D printers, especially when printing rectangular shapes.
PRODUCT DESCRIPTION
The technology behind Zortrax Inkspire relies on a high-resolution LCD screen with UV LED backlighting to cure photopolymers layer by layer.
Microscopic precision: The smallest object Zortrax Inkspire can 3D print is a cuboid measuring 50x50x25 microns.
Consistent speed: Same high speed of 20-36 mm/h is maintained regardless of how much of the workspace is filled.
External resins: All available resins that can be cured by light with 405 nm wavelength are supported.
On-the-fly Settings: Print settings like time of layer’s exposure or rest between layers can be changed on the fly.
Resin 3D printing is a technology perfect for professionals working in fields where very small yet incredibly detailed models are needed. The precision and speed of Zortrax Inkspire makes it a game changing tool for dentists, jewelers, and watch designers among others.
Flexible manufacturing: Zortrax Inkspire 3D printers offer scalable, flexible manufacturing capabilities for businesses needing small, precise components. It is a perfect tool for engineers working at research and development departments and on production lines in various industries from automotive through aerospace to consumer electronics.
Art and entertainment: Small yet beautifully designed models made on resin 3D printers are useful for artists and the entertainment industry. Detailed figurines can be made for board games. Small intricate gifts made in limited series are perfect for marketing and public relations departments.
Dental prosthetics: Resin 3D printers are particularly useful in making dental casts faster and more efficient. Compared with traditional dental modelling techniques, Zortrax Inkspire allows less invasive procedures requiring little to no patient’s involvement. 3D printed models of patients’ oral cavities are used to form dental casts, prostheses, and bridges.
Jewelry design: Modelling intricate rings, necklaces, and other jewelry requires an immense precision a good resin 3D printer can offer. 3D printed models are used in the lost wax casting process. A master model is immersed in a refractory casting material to create a mold for final jewelry items made of various metals.
SPECIFICATIONS
| Technology | UV LCD |
| Pixel size | 50 microns (0.05 mm) |
| Layer thickness | 25, 50, 100 microns |
| Print speed | 20-36 mm/h |
| Build volume | 74 x 132 x 175 mm (2.9 x 5.2 x 6.9 in) |
| Light source | UV integrated light (wavelength 405 nm) |
| Connectivity | Wi-Fi, Ethernet, USB |
| Operating system | Android |
| Processor | Quad Core |
| Touchscreen | 4″ IPS 800 x 480 |
| AC input | 110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5A 50/60 Hz |
| Maximum power consumption | 75 W |
| Ambient operation temperature | 20 – 30° C (68 – 86° F) |
| Storage temperature | 0 – 35° C (32 – 95° F) |
| Supported file types | .stl, .obj, .dxf, .3mf, .zcodex |
| Supported formats | .cws, .zcodex |
| Supported operating systems | Mac OS X / Windows 7 and newer versions |
| Materials | |
| Dedicated Resins | Resin PRO Resin FLEXIBLE Resin DENTAL MODEL Resin BASIC |
| External Resins | Applicable |
| Wavelength | 405 nm |
| Support | Mechanically removed – printed with the same material as the model |
