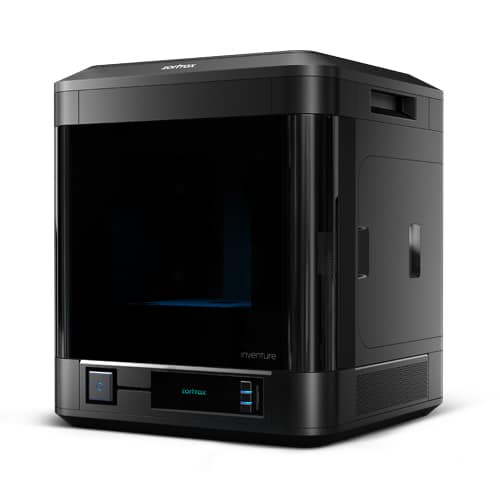

Zortrax Inventure
Zortrax Inventure is an affordable desktop machine with capabilities found almost exclusively in large industrial 3D printers, a dissolvable support system, an enclosed heated chamber and a built-in HEPA filter. All of those features combined and integrated with Zortrax Ecosystem makes Zortrax Inventure a plug & play desktop 3D printer offering industrial-class performance.
PRODUCT DESCRIPTION
Zortrax Inventure is an affordable desktop machine with capabilities found almost exclusively in large industrial 3D printers: a dissolvable support system, an enclosed heated chamber and a built-in HEPA filter. All of those features combined and integrated with Zortrax Ecosystem makes Zortrax Inventure a plug & play desktop 3D printer offering industrial-class performance.
Innovative dual-extrusion system: One extruder feeds two 3D printing filaments to two nozzles: one for the model and one for water-soluble support structures. This way we could reduce size and weight of the mechanism.
Enclosed printing chamber: The build platform is practically sealed off from the surrounding environment to ensure tightly controlled 3D printing conditions.
Built-in HEPA filter: A HEPA filter catches over 99% of 3D printing emissions, including ultra-fine particles below 100 nm in diameter.
Smart cartridges: 3D printing materials for Zortrax Inventure come in smart cartridges that inform you about the type of filament inside and whether it’s about to run out.
Intuitive model processing: Just load your 3D file and Z-SUITE 2 will automatically convert it to the model ready to print.
Thin wall detection: Z-SUITE 2 pinpoints walls that would be too thin to be printed properly, allowing you to detect problematic areas before printing the model.
Multiple infill options: Different infill patterns allow you to ensure required durability of the model and reduce the material usage.
Model stacking: Speed up the production by utilizing advantages of dissolvable support. Stack multiple models and 3D print them in one go.
Zortrax Inventure works with three water-soluble support filaments: Z-SUPPORT, Z-SUPPORT Plus, and Z-SUPPORT Premium. Once the 3D printing is done, most of support structures can be removed hands-free even from almost inaccessible places.
SPECIFICATIONS
Technology | LPD Plus (Layer Plastic Deposition Plus) – advanced technology with the system of Dissolvable Support Structures |
Layer resolution | 90-290 microns |
Minimal optimal wall thickness | 800 microns |
Minimal wall thickness | 400 microns |
Resolution of a single printable point | X/Y axes: 400 microns Z axis: 90-200 microns |
X/Y positioning accuracy | 1.5 micron |
Z-axis single step | 1.25 micron |
Maximum printing temperature (extruder) | 310 ˚C (590 °F) |
Heated chamber | Yes |
Maximum chamber temperature | 90 ˚C (194 °F) |
Ambient operation temperature | 15 – 30 ˚C (59 – 86 °F) |
Storage temperature | 0 – 35 ˚C (32 ˚-95 ˚F) |
AC input | 110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5 A 50/60 Hz |
Power supply parameters | 24 V DC @ 14 A, 320 W |
Maximum power consumption | 300 W |
Build volume | 135 x 135 x 130 mm (5.3 x 5.3 x 5.1 in) |
Nozzle diameter | 0.4 mm (0.016 in) |
HEPA Filter | Yes |
Extruder
|
Printing with the model and the support material |
Connectivity | SD card (included) |
Supported file types | .stl, .obj, .dxf, .3mf |
Supported operating systems | Mac OS X / Windows 7 and newer versions |
Filaments | |
Dedicated filaments | Z-PETG Z-ULTRAT Plus Z-PLA Z-SEMIFLEX |
Support | Dissolvable – printed with a different material than the model |
Support Filaments | Z-SUPPORT Premium Z-SUPPORT Plus Z-SUPPORT |
Filament container | Cartridge |
