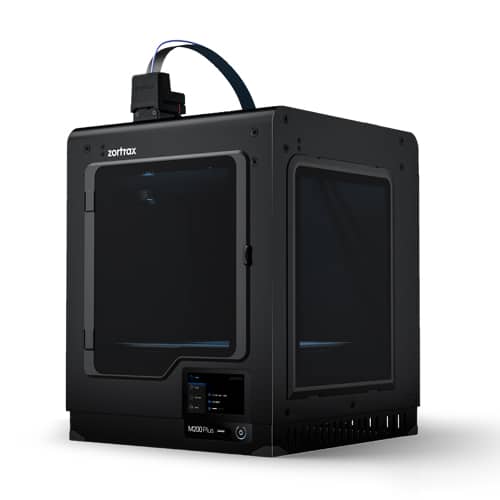

Zortrax M200 Plus
Expand your 3D printing capabilities with Zortrax M200 Plus 3D printer. Easily manage multiple devices over Wi-Fi using Z-SUITE slicing software. Monitor the progress with the built-in camera. Whether it is for industrial manufacturing or prototyping, Zortrax M200 Plus offers remarkable dimensional accuracy and consistency of integrated Zortrax Ecosystem.
Zortrax M200 Plus is an advanced 3D printer, ready for high quality 3D printing right after unboxing. Just plug & 3D print, no assembly or tinkering needed. Easily select available options by touching the icons on the built-in touchscreen. You can also preview 3D models directly on the screen.
Moreover, the interface can be improved with automatic firmware updates over Wi-Fi. Beside transferring files wirelessly, you can also use a USB storage device of any kind.
PRODUCT DESCRIPTION
Zortrax M200 Plus is a high-performance desktop 3D printer with wireless connectivity. It’s designed to work in large 3D printing farms as a powerhouse of rapid prototyping, design, and production. The printer works in the LPD technology, Zortrax original take on Fused Deposition Modeling (FDM) guaranteeing high-quality results and low maintenance. It deposits melted thermoplastic filaments layer by layer to turn digital models into physical objects.
FDM is the most cost-efficient technique of 3D printing on the market, which makes it perfect for rapid prototyping and manufacturing without putting extensive strains on the budget. Designed as a basic production unit for a 3D printing farm, Zortrax M200 Plus is made for reliable, unsupervised operation over long periods of time. Dedicated Z-SUITE software has all the features necessary for remote management of multiple M200 Plus 3D printers over Wi-Fi to efficiently cope with scalable, flexible rapid manufacturing.
Multiple Zortrax M200 Plus 3D printers connected into a 3D printing farm can help optimize rapid manufacturing, prototyping, and design. They speed up the low-volume production by increasing the number of products that can be made in one go. Research and development staff can quickly test different variations of their designs to find the best possible solutions while designers are free to print their concepts on any of the available printers at any given time. Zortrax M200 Plus is more than capable of working in large established corporations and small businesses alike.
Zortrax M200 Plus Main Features
› Workspace measures 200x200x180 mm
› Wi-Fi and Ethernet connectivity
› Can work in 3D printing farms
› Offers advanced remote management
› Has a filament endstop mechanism
› Has a built-in camera
› Has an Intuitive LCD touchscreen, a Cooling system has been upgraded (double fan and extruder cooling)
› Extruder has been upgraded (redesigned hotend v3 and nozzle with new geometry)
› Offers compatibility with fex-type materials
› Works with a wide range of dedicated filaments
› Supports third-party filaments
SPECIFICATIONS
| Technology | LPD (Layer Plastic Deposition) / FFF |
| Layer resolution | 90-390 microns (for 0.4 mm [0.016 in] nozzle) |
| Minimal wall thickness | 400 microns (for 0.4 mm [0.016 in] nozzle) |
| Dimensional accuracy | +/- 0,2%* |
| Angle accuracy | +/- 0,2%** |
| Maximum printing temperature (extruder) | 290° C (554° F) |
| Build platform | Heated |
| Processor | Quad Core |
| Operation system | Android |
|
Maximum platform temperature
|
105° C (221° F) |
| Ambient operation temperature | 20° – 30° C (68°-86° F) |
|
Storage temperature
|
0° – 35° C (32°-95° F) |
| AC input | 110 V ~ 5.9 A 50/60 Hz 240 V ~ 2.5 A 50/60 Hz |
| Maximum power consumption | 320 W |
| Supported file types | .stl, .obj, .dxf, .3mf |
| Supported operating systems | Mac OS X / Windows 7 and newer versions |
| Output format | ZCODEX |
| Build volume | 200 x 200 x 180mm (7.9 x 7.9 x 7.1 in) |
| Nozzle diameter | 0.3 mm (0.012), 0.4 mm (0.016 in), 0.6 mm (0.024 in) |
| Connectivity | USB, RJ45, WiFi |
| Extruder | Single (upgraded for experimental materials) |
| New cooling system | Double fan and extruder cooling |
| Hotend | V3 and nozzle with new geometry |
| Material runout | Mechanical endstop |
| Build Plate | Perforated plate with pogopins instead of small connector |
| Platform levelling | Auto |
| Touchscreen | 4″ IPS 800×480 |
| Filaments | |
| Dedicated filaments | PHA, NYLON, FLEX, PLA Pro, PETG, PCABS, SEMIFLEX,
ULTRAT, HIPS, GLASS,ESD, ASA Pro,ABS |
| External filaments | Applicable |
| Filament diameter | 1.75 mm (0.069 in) |
