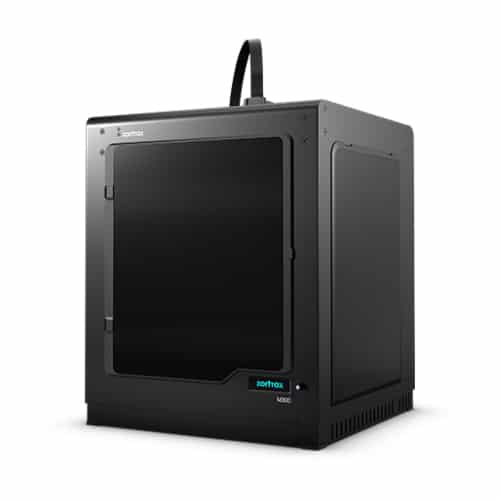

Zortrax M300 Plus
Zortrax M300 Plus is a high-performance Wi-Fi 3D printer with a large workspace. Wireless connectivity enables it to work in huge 3D printing farms. Zortrax M300 Plus offers the same renowned reliability and quality of prints distinguishing all M series 3D printers. Its workspace measures 300 x 300 x 300 mm, which is enough to print big models in one go.
Zortrax M300 Plus uses the LPD technology, Zortrax’s original take on Fused Deposition Modeling (FDM). It deposits melted thermoplastic filaments layer by layer to turn digital models into physical objects.
FDM is the most cost-efficient 3D printing technology on the market which makes it perfect for rapid prototyping and manufacturing on tight budgets. It enables 3D printing with a wide variety of polymers with different mechanical, chemical and thermal properties.
PRODUCT DESCRIPTION
Zortrax M300 Plus large workspace is particularly useful when 3D printing big models in one piece are needed. That’s why it is a perfect choice for industries like automotive, aerospace and architecture. It’s also an efficient short-series production device because the build platform can easily accommodate multiple models. A network of Zortrax M300 Plus 3D printers can be remotely controlled due to 3D printing farm management capabilities included in the Zortrax dedicated Z-SUITE software that comes free with all our 3D printers. In order to monitor the print conformity and minimize waste, Zortrax M300 Plus is equipped with a camera built-in inside the printing chamber, as well as new smart functionalities like the filament endstop mechanism.
Zortrax M300 Plus is a part of a larger Zortrax Ecosystem comprising of Z-SUITE, an advanced slicing and farm management software, and a wide range of dedicated filaments designed to work with the printer. These include all the materials previously compatible with the original M300 and, Z-ULTRA – a highly durable ABS-based polymer. The extruder has been redesigned. The hotend and nozzle geometry has been improved and an additional cooling fan has been added. This way Zortrax M300 Plus has been made compatible with fex-type materials among others. All 1.75 mm third-party filaments are also supported to cater to advanced users looking for more sophisticated applications.
Zortrax M300 Plus Main Features
› Workspace measures 300x300x300 mm
› Has Wi-Fi and Ethernet connectivity
› Can work in 3D printing farms
› Offers advanced remote management
› Has a filament endstop mechanism
› Has a built-in camera
› Has an Intuitive LCD touchscreen
› Axes geometry has been improved
› Cooling system has been upgraded (double fan and extruder cooling)
› Extruder has been upgraded (redesigned hotend v3 and nozzle with new geometry)
› Offers compatibility with fex-type materials
› Offers compatibility with Z-ULTRA
› Works with a wide range of dedicated filaments
› Supports third-party filaments
SPECIFICATIONS
| Technology | LPD (Layer Plastic Deposition) – depositing melted material layer by layer onto the build platform |
| Layer resolution | 90-290 microns (for 0.4 mm [0.016 in] nozzle) |
| Minimal wall thickness | 400 microns (for 0.4 mm [0.016 in] nozzle) |
| Platform levelling | Automatic measurement of platform points’ height |
|
Build volume
|
300 x 300 x 300 mm (11.8 x 11.8 x 11.8 in) |
| Nozzle diameter | 0.3 mm (0.012 in), 0.4 mm (0.016 in), 0.6 mm (0.024 in) |
| Extruder | Single (upgraded for more demanding materials) |
| Extruder cooling system | Radial fan cooling the extruder block; two fans cooling the print |
| Hotend | Redesigned (v3), new geometry of the nozzle |
| Platform | Perforated, heated |
| Material endstop | Mechanical |
| Connectivity | Wi-Fi, Ethernet, USB |
| Operating system | Android |
| Processor | Quad Core |
| Touchscreen | 4″ IPS 800 x 480 |
| Camera | Yes |
| Maximum printing temperature (extruder) | 290° C (554° F) |
| Maximum platform temperature | 105° C (221° F) |
| Ambient operation temperature | 20 – 30° C (68- 86° F) |
| Storage temperature | 0 – 35° C (32- 95° F) |
| AC input | 110 V ~ 5.9 A 50/60 Hz ; 240 V ~ 2.5 A 50/60 Hz |
| Maximum power consumption | 360 W |
| Software bundle | Z-SUITE |
| Supported input file types | .stl, .obj, .dxf, .3mf |
|
Supported operating systems
|
Mac OS X / Windows 7 and newer versions |
| Dedicated filaments | PHA, NYLON, FLEX, PLA Pro, PETG, ULTRAT, HIPS, GLASS, ESD, ASA Pro |
| External filaments | Applicable |
| Support | Mechanically removed – printed with the same material as the model |
| Filament diameter | 1.75 mm (0.069 in) |
