think3D HIPS

HIPS (High Impact Polystyrene) is a dissolvable filament that is frequently used as support material. It acts as a great support material because it is easily removed with Limonene solution, leaving the clean high-quality print that you want behind. HIPS requires no scraping, cutting, or any other method of removal that may cause damage to your prints.

HIPS is short for High Impact Polystyrene and is very similar to ABS. The primary difference is that HIPS uses Limonene as a solvent. This means that you can use HIPS as a support material which can then easily be dissolved by placing your print in Limonene. This is a fantastic alternative to sanding away regular support material which can make your hands sore and leave you feeling frustrated.

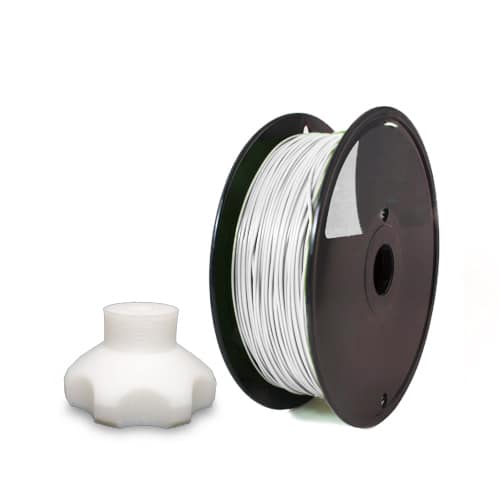

As you can see from the picture above, HIPS allows you to print all sorts of crazy designs that would be otherwise impossible without a dissolving support material.

HIPS is as easy to print with as ABS but is much less likely to warp. HIPS is ideal for printing in conjunction with ABS because it has a similar strength and stiffness profile to ABS which means they complement each other well. It also helps that HIPS and ABS need to be printed around the same temperature. MatterHackers HIPS prints best with the bed between 90-110°C and the extrusion temp around 230°C

Density 1.05g/cm-3
Heat Deflection Temperature 80C
Tensile Strength at Yield 27 MPa
Tensile Elongation at break 55%
Flexural Modulus 39 MPa
Flexural Strength 2280 MPa
Notched Izod Impact 11 J/M2

Click here to know more about 3D Printers, 3D Printing technologies, materials and services.
