Multi Jet Printing (MJP)

[fusion_builder_container hundred_percent=”no” equal_height_columns=”no” menu_anchor=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” parallax_speed=”0.3″ video_mp4=”” video_webm=”” video_ogv=”” video_url=”” video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” overlay_color=”” video_preview_image=”” border_size=”” border_color=”” border_style=”solid” padding_top=”” padding_bottom=”” padding_left=”” padding_right=””][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_1″ background_position=”left top” background_color=”” border_size=”” border_color=”” border_style=”solid” border_position=”all” spacing=”yes” background_image=”” background_repeat=”no-repeat” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”0px” margin_bottom=”0px” class=”” id=”” animation_type=”” animation_speed=”0.3″ animation_direction=”left” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” center_content=”no” last=”no” min_height=”” hover_type=”none” link=””][fusion_tagline_box backgroundcolor=”” shadow=”no” shadowopacity=”0.70″ border=”1″ bordercolor=”” highlightposition=”left” content_alignment=”left” link=”” button=”” linktarget=”_self” modal=”” button_size=”” button_type=”” button_shape=”” buttoncolor=”default” title=”” description=”” margin_top=”” margin_bottom=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]

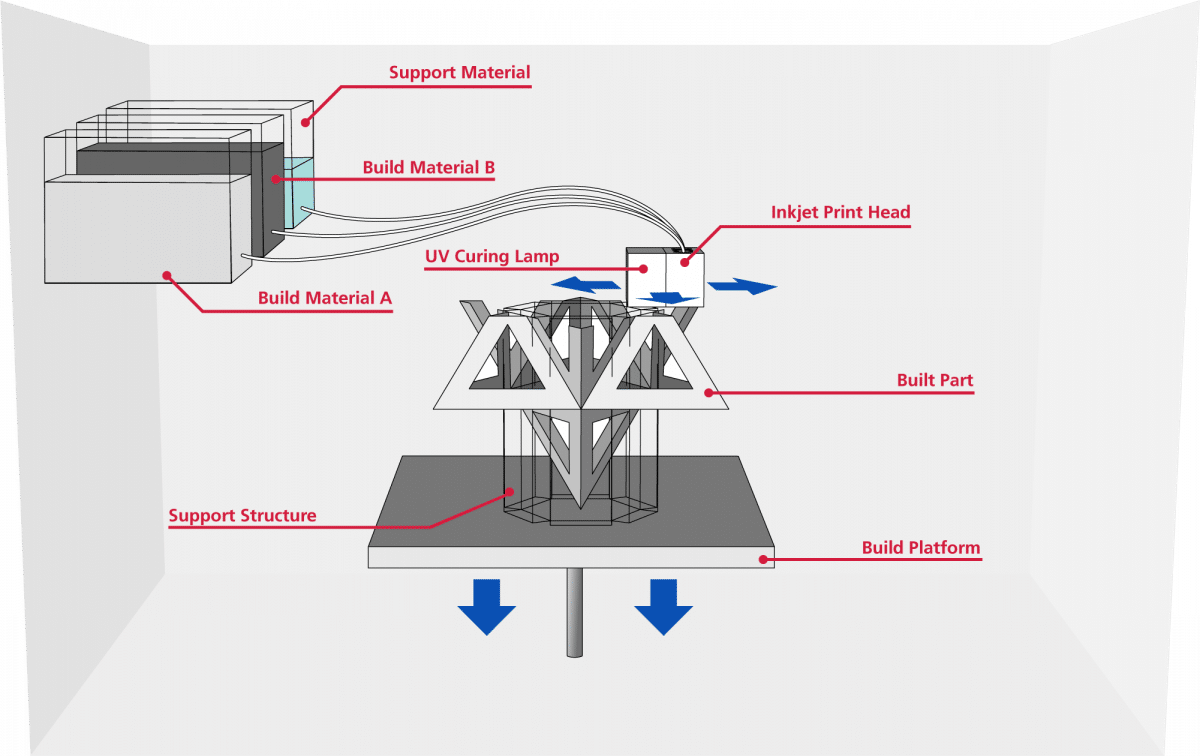

MJP or MultiJet Printing is an inkjet printing process that uses piezo printhead technology to deposit either photocurable plastic resin or casting wax materials layer by layer.

[/fusion_tagline_box][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” hundred_percent_height=”no” hundred_percent_height_scroll=”no” hundred_percent_height_center_content=”yes” equal_height_columns=”no” menu_anchor=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” status=”published” publish_date=”” class=”” id=”” background_color=”” background_image=”” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_mp4=”” video_webm=”” video_ogv=”” video_url=”” video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” video_preview_image=”” border_size=”” border_color=”” border_style=”solid” margin_top=”0px” margin_bottom=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=””][fusion_builder_row][fusion_builder_column type=”3_5″ layout=”3_5″ spacing=”” center_content=”no” link=”” target=”_self” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_image_id=”” background_position=”left top” background_repeat=”no-repeat” hover_type=”none” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”26380|full” max_width=”” style_type=”” blur=”” stylecolor=”” hover_type=”none” bordersize=”” bordercolor=”” borderradius=”” align=”center” lightbox=”no” gallery_id=”” lightbox_image=”” lightbox_image_id=”” alt=”” link=”” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]https://www.think3d.in/wp-content/uploads/2019/02/MJPTECHNOLOGY.jpg[/fusion_imageframe][/fusion_builder_column][fusion_builder_column type=”2_5″ layout=”2_5″ spacing=”” center_content=”no” link=”” target=”_self” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_image_id=”” background_color=”” background_image=”” background_position=”left top” undefined=”” background_repeat=”no-repeat” hover_type=”none” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_title hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” content_align=”left” size=”3″ font_size=”20PX” line_height=”” letter_spacing=”” margin_top=”” margin_bottom=”” text_color=”” style_type=”none” sep_color=””]

WHY CHOOSE THINK3D

[/fusion_title][fusion_text columns=”” column_min_width=”” column_spacing=”” rule_style=”default” rule_size=”” rule_color=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=””]

think3D has one MJP ( Multi Jet Printing) machine in-house to produces micro-detail wax patterns with outstanding surface quality and extremely fine features, ideal for intricate direct investment casting applications, such as jewelry.

[/fusion_text][fusion_button link=”https://www.think3d.in/3d-printing-on-demand-place-order/” text_transform=”” title=”” target=”_self” link_attributes=”” alignment=”” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” color=”default” button_gradient_top_color=”” button_gradient_bottom_color=”” button_gradient_top_color_hover=”” button_gradient_bottom_color_hover=”” accent_color=”” accent_hover_color=”” type=”” bevel_color=”” border_width=”” size=”” stretch=”default” shape=”” icon=”” icon_position=”left” icon_divider=”no” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]GET QUOTE NOW[/fusion_button][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” menu_anchor=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” parallax_speed=”0.3″ video_mp4=”” video_webm=”” video_ogv=”” video_url=”” video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” overlay_color=”” video_preview_image=”” border_size=”” border_color=”” border_style=”solid” padding_top=”” padding_bottom=”” padding_left=”” padding_right=””][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_1″ background_position=”left top” background_color=”” border_size=”” border_color=”” border_style=”solid” border_position=”all” spacing=”yes” background_image=”” background_repeat=”no-repeat” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”0px” margin_bottom=”0px” class=”” id=”” animation_type=”” animation_speed=”0.3″ animation_direction=”left” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” center_content=”no” last=”no” min_height=”” hover_type=”none” link=””][fusion_tabs design=”classic” layout=”horizontal” justified=”yes” backgroundcolor=”#ffffff” inactivecolor=”#dbdbdb” bordercolor=”” icon=”” icon_position=”” icon_size=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=””][fusion_tab title=”Overview” icon=”fa-cogs fas”]

MJP is used to build parts, patterns and molds with fine feature detail to address a wide range of applications. These high-resolution printers are economical to own and operate and use a separate, meltable or dissolvable support material to make post-processing a breeze. Another big benefit is that removing support material is virtually a hands-free operation and allows even the most delicate features and complex internal cavities to be thoroughly cleaned without damage.

MJP printers offer the highest Z-direction resolution with layer thicknesses as low as 16 microns. In addition, selectable print modes allow the user to choose the best combination of resolution and print speed, so it’s easy to find a combination that meets your needs. Parts have smooth finish and can achieve accuracies rivaling SLA for many applications. Recent material advances have improved the durability of plastic materials and are now suitable for some end-use applications.

One nice point about MJP printers is that they are office compatible, using standard office electricity to provide convenient and affordable access to high-quality prototypes and indirect manufacturing aids. Office compatibility in concert with their capabilities make MJP printers ideal for direct investment casting applications in jewelry, dental, medical and aerospace applications where digital workflows provide significant time, labor, quality and cost advantages.

MJP wax printers also offer a digital drop-in alternative to traditional lost-wax casting processes, eliminating time consuming and costly process steps while utilizing traditional casting methods and materials. All in all, these printers can print virtually any geometry and provide scalable high-volume throughput.

[/fusion_tab][fusion_tab title=”Applications” icon=”fa-puzzle-piece fas”]

• Concept modeling
  • Communication, sales and marketing model
  • Rapid design iteration for rigid plastic or elastomeric products

• Validation prototyping
  • Design verification and testing
  • Assemblies validation, including snap-fit
  • Water-tightness applications, fluid flow visualization
  • Functional testing of plastic and elastomeric products
  • Educational functional prototyping
  • Get more parts faster with an effective file-to-finished-part process
  • Create high-fidelity parts you can rely on
  • Enjoy exceptional sharp edges and fine features definition
  • Greater geometric freedom with effective support removal
  • Choice of plastic and elastomeric materials engineered for performance
  • Use a MultiJet modeling machine that’s designed for your work environment
  • Low Total Cost of Ownership (TCO)

[/fusion_tab][fusion_tab title=”Materials” icon=”fa-flask fas”]

• ∗VisiJet® M2R-WT (Rigid White, General Purpose)
• ∗VisiJet® M2R-BK  (Rigid Black, General Purpose)
• VisiJet® M2G-DUR (VisiJet ProFlex, PP-like)
• VisiJet® M2R-GRY  (Rigid Gray, High Contrast)
• VisiJet® M2G-CL (VisiJet Armor, Clear, ABS-like)
• VisiJet® M2R-CL (Rigid Clear, General Purpose)
• VisiJet® M2-EBK (Elastomeric Black, High Flex)
• VisiJet® M2-ENT (Elastomeric Natural, High Flex)

[/fusion_tab][fusion_tab title=”Specifications” icon=”fa-file-alt far”]

[/fusion_tab][fusion_tab title=”Post Processing” icon=”fa-paint-brush fas”]

After the part(s) completed the printing process, there are steps that must be followed before it can be considered finished. Follow these steps to remove the build Support Wax from the part(s).

Supplies Needed

• Paper Towels / Absorbent Pads
• Nitrile Gloves
• Insulating Gloves
• Safety Glasses
• Protective Clothing (lab coat, protective sleeves)

Equipment and Tools Needed

• Two MJP EasyClean warmer units capable of heating to 100°C (212°F)
• Fine wax removal fluid (such as EZ Rinse-C or mineral oil)

[/fusion_tab][/fusion_tabs][fusion_button link=”https://www.think3d.in/wp-content/uploads/2019/05/resourcedoc_5cb5ec022f09c_product-manual1550325553_MJP.pdf” text_transform=”” title=”” target=”_blank” link_attributes=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” color=”default” button_gradient_top_color=”” button_gradient_bottom_color=”” button_gradient_top_color_hover=”” button_gradient_bottom_color_hover=”” accent_color=”” accent_hover_color=”” type=”” bevel_color=”” border_width=”” size=”small” stretch=”default” shape=”” icon=”fa-download fas” icon_position=”right” icon_divider=”no” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=””]Download Brochure[/fusion_button][fusion_text]

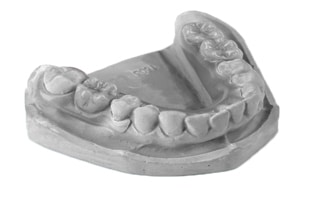

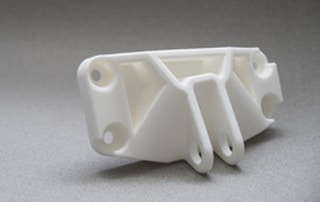

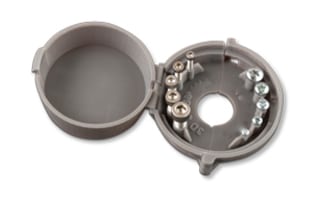

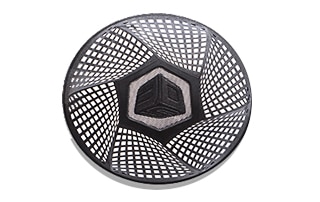

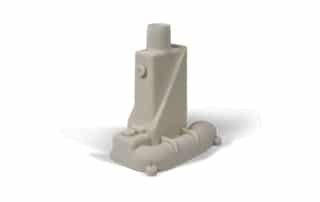

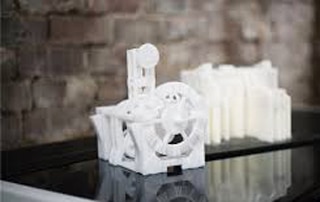

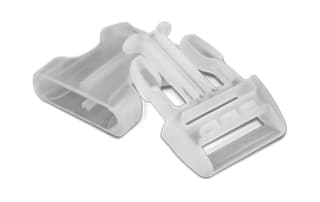

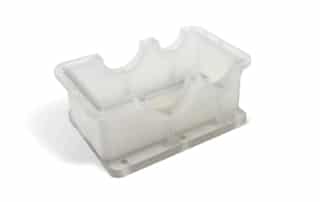

Gallery

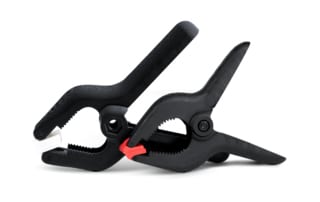

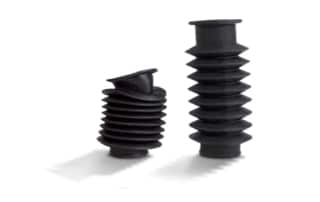

[/fusion_text][fusion_images picture_size=”fixed” hover_type=”none” autoplay=”no” columns=”4″ column_spacing=”13″ scroll_items=”” show_nav=”yes” mouse_scroll=”no” border=”yes” lightbox=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=””][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/mjp-gallery1.jpg” image_id=”26271|full” link=”” linktarget=”_self” alt=”” /][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/mjp-gallery2.jpg” image_id=”26272|full” link=”” linktarget=”_self” alt=”” /][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/mjp-gallery3.jpg” image_id=”26273|full” link=”” linktarget=”_self” alt=”” /][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/m1.jpg” image_id=”26274|full” link=”” linktarget=”_self” alt=”” /][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/m2.jpg” image_id=”26275|full” link=”” linktarget=”_self” alt=”” /][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/m3.jpg” image_id=”26276|full” link=”” linktarget=”_self” alt=”” /][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/m4.jpg” image_id=”26277|full” link=”” linktarget=”_self” alt=”” /][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/m5.jpg” image_id=”26278|full” link=”” linktarget=”_self” alt=”” /][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/m6.jpg” image_id=”26279|full” link=”” linktarget=”_self” alt=”” /][fusion_image image=”https://www.think3d.in/wp-content/uploads/2019/02/m7.jpg” image_id=”26280|full” link=”” linktarget=”_self” alt=”” /][/fusion_images][fusion_text]
